pressure blasting rooms built by Power Blast
SAND BLASTING ROOMS
Power Blast International produce the complete range of pressure blasting rooms from custom built permanent facilities to portable containerised rooms. We also design & manufacture standard and special purpose cabinets, Power Blast shot blasting machines and the protective equipment required for safe and comfortable operation.
Sand blasting dust collecting units
Special purpose Shot blasting cabinets
Custom built blasting rooms
Irish Rail
Supply and Commission Bogie Shot blast Cleaning Facility at Inchicore Works Dublin
CONTAINERISED BLASTING ROOMS
Power Blast are the pioneers in containerised Shotblast Rooms and Finishing Booths and produced their first facility over 25 years ago.
Since our first ISO container conversion, the range has been expanded to include:
- Standard Containers 20'0 x 30'0 x 40'0 x 8'0 wide and 8'6"/9'6" high with semi or fully automatic abrasive recovery.
- Custom Built Containers up to 50'0 long, 14'0 wide and 12'0 high with semi or fully automatic abrasive recovery. Handling equipment – either rail bogies or overhead cranes can be incorporated as required.
- Double Container Units For extra wide facilities up to 20'0 in width units can be manufactured and transported as 2 x single units and joined together on site. These can be fitted with semi or fully automatic abrasive recovery floor.
- Complete Finishing Plant In addition to shotblasting rooms, paint spraying and curing processes can also be handled to provide a total facility.

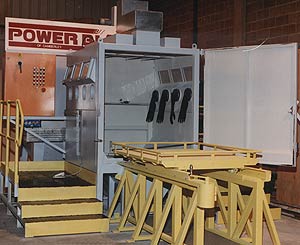

STANDARD PRESSURE SAND BLASTING CABINETS
Power Blast manufacture a range of pressure operated cabinets siutable for a range of blasting media. These are substantial, robust units (not to be confused with suction fed cabinets), are rubber lined internally and supplied with heavy duty perforated plate flooring.
All are fitted with Power Blast Machine and Dust Collector capable of handling the most contaminated cleaning operation.
- Model 533 size 5'0 x 3'0 x 3'0 (1520 x 915 x 915). A spacious blast chamber for large components, abrasive recycling directly into Power Blast Machine or with Bucket Elevator (illustrated) for floor level operation.
- Model 3330 size 3'0 x 3'0 x 2'6" (915 x 915 x 760) popular model fitted with Power blast 1A Machine and load end with rotary table.
- Model 333 size 3'0 x 3'0 x 3'0 (915 x 915 x 915) heavy duty unit fitted with Power Blast 1A Machine for floor level operation.
- Model 222 size 2'0 x 2'0 x 2'0
(610 x 610 x 610) smallest of this range for light components and small workshops, fitted with Power Blast 1A Machine for floor level operation.
For further details and prices of these or any other size cabinet (please advise sizes, component weights etc.) please call or use our contact page.
SPECIAL PURPOSE SHOT BLASTING CABINETS
At Power Blast we have a wealth of experience in the design and construction of special purpose blasting machines
Examples of These are Shown Below:
DUST COLLECTION UNITS FOR ABRASIVE BLASTING
The single most expensive item in a shotblasting room is the ventilation system and to ensure a well ventilated room with good visibility and rapid dust clearence, the sizing of the dust collector is critical. (beware of low price undersizing) sizes vary from cabinates/recovery units.
Sizes Vary From Cabinets/Grit Recovery Units
ABRASIVE RECOVERY SYSTEMS
- The Semi Automatic or Sweep Up system where the spent abrasive is moved to a floor recovery hopper and the material is lifted and cleaned in a grit recovery unit.
- A partial recovery system which utilises an underfloor screw conveyor into which the abrasive is swept and which uses a bucket elevator for lifting and cleaning the abrasive.
- A fully automatic system when 100% of the floor area is recovered using a series of screw conveyors set below floor level or within a low profile steel framework located at floor level.
We can build you a custom recovery system, please contact us to discuss your specific requirements
